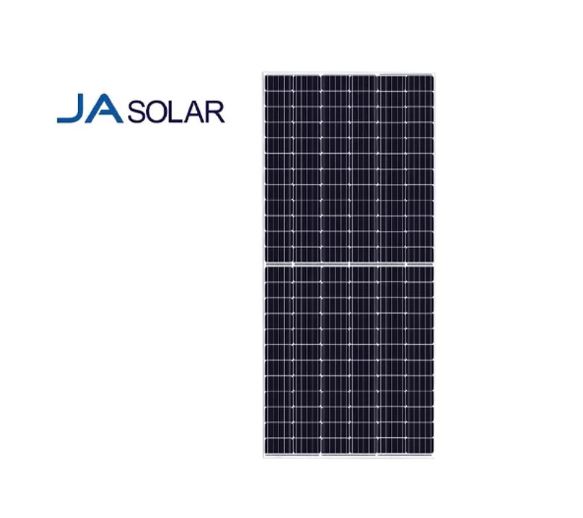

Name: JA Solar Panel Mono Perc-550Watts
Price:
Description:
Product Details:
|
Model |
JAM72S30-550/MR |
|
Peak power (Wp) |
550 |
|
Power tolerance |
0/+5W |
|
Number of cells |
144 |
|
Efficiency |
21,3% |
|
Frame |
Anodized aluminum silver color |
|
Dimensions |
2279 x 1134 x 35 mm |
|
Weight |
28,6 kg |
|
Cable |
1300 mm |
|
Connectors |
MC4-EVO2 |
|
Glass |
Tempered glass 3,5 mm |
|
frame |
Anodized Aluminum |
|
J-Box |
IP68 with 3 diodes |
|
Warranty |
12 years |
|
Warranty of generation |
84,8% at 25 years |
Name: Inverex Inverter(Hybrid) - 12kw(48V)-3PH
Price:
Description:
Inverex Nitrox 12 KW - 48 V Solar inverter (Three phase)
Product Details:
- 15600 WATTS MPPT SUPPORTS UP TO 600 WATTS SOLAR PANEL
- 240 AMP Solar charger
- Smart Pv Monitoring Platform
- Stick logger
- Max. Efficiency 97.6%
- Support Multiple Parallel
- Zero Export
- RS485 / CAN
- Efficiency
- IP65 Ingress Protection
- Support Generator Connection
- High Surge Endurance
- High Power Factor
- Touch Screen Display
- MPPT
- Internal SPD
- Six-Time of Use Setting
- Safe
- Built-in AC Breaker
- Dual 3 Phase Output
Name: Batteries
Price:
Description:
AGS-GX-200F
12V 175AH(20HR)
SPECIFICATIONS:
| Battery Type |
195G51 |
|---|---|
| Plate Qty. / Cell |
27PL |
| Capacity @ 20 hrs. (AH) |
175 |
| Terminal Type |
T2 (Thick) |
| Battery Length |
508 +0/-5 |
| Battery Width |
222 +0/-5 |
| Overall Height (max.) |
257 |
| Terminal Layout |
C |
| Dry Battery Weight (Kg) |
31.2 |
| Capacity @ 5 hrs. (AH) |
140 |
| Container Height (H) |
213 +0/-7 |
Name: DC Cables
Price:
Description:
Solar DC Cable 1 Core 10mm BS:6500
Description:
Single Core Cables conform to BS-6004 “PVC Insulated cables (non-armored) for electric power and lighting”. PVC Insulated Non Sheathed Cables are in the size range of 1.5 sq. mm to 630 sq. mm and are rated 450/750 Volts. Single Core Cables with additional PVC Over Sheath go up-to and including 35 sq. mm conductor size and are rated 600/1000 Volts.
Details
This products range is suitable for applications including measuring and control equipment in fixed or flexible installation
PVC Insulated Flexible & Control Cables are manufactured in accordance with BS-6004, BS-6500 with a number of International Standards
Name: Connectors
Price:
Description:
MC4 Solar Panel Connector
Description:
MC4 Solar Panel Connector 4 Pairs In One Pack are made with the highest quality materials. You can feel that they are heavier and sturdier than other similar products in the market. This is to ensure long term durability. Solar photovoltaic module cable connector, the connector USES inner drum spring, male and female connector and component junction box connector with the use of PPO material, the connector has anti-ageing, UV resistance, meet the requirements of the power station in bad conditions
Specifications:
- Name:MC4 solar connector
- Rated current:30A
- Rated voltage:1000VDC
- Test voltage:6000v (50Hz)
- Plug connector:≤5mΩ contact resistance
- Connector conductor material: Tinned copper
- Connector insulation material: PPO
- Protection level: IP67
- Flame retardant grade:UL94-V0
- Safe type: II
- Insertion force:≤50n
- Take force:≥50n
- Operating temperature range:-40°C~ +90°C
- Suitable cable:2.5mm
Name: JA Solar Panel Mono Perc-550Watts
Price:
Description:
Product Details:
|
Model |
JAM72S30-550/MR |
|
Peak power (Wp) |
550 |
|
Power tolerance |
0/+5W |
|
Number of cells |
144 |
|
Efficiency |
21,3% |
|
Frame |
Anodized aluminum silver color |
|
Dimensions |
2279 x 1134 x 35 mm |
|
Weight |
28,6 kg |
|
Cable |
1300 mm |
|
Connectors |
MC4-EVO2 |
|
Glass |
Tempered glass 3,5 mm |
|
frame |
Anodized Aluminum |
|
J-Box |
IP68 with 3 diodes |
|
Warranty |
12 years |
|
Warranty of generation |
84,8% at 25 years |

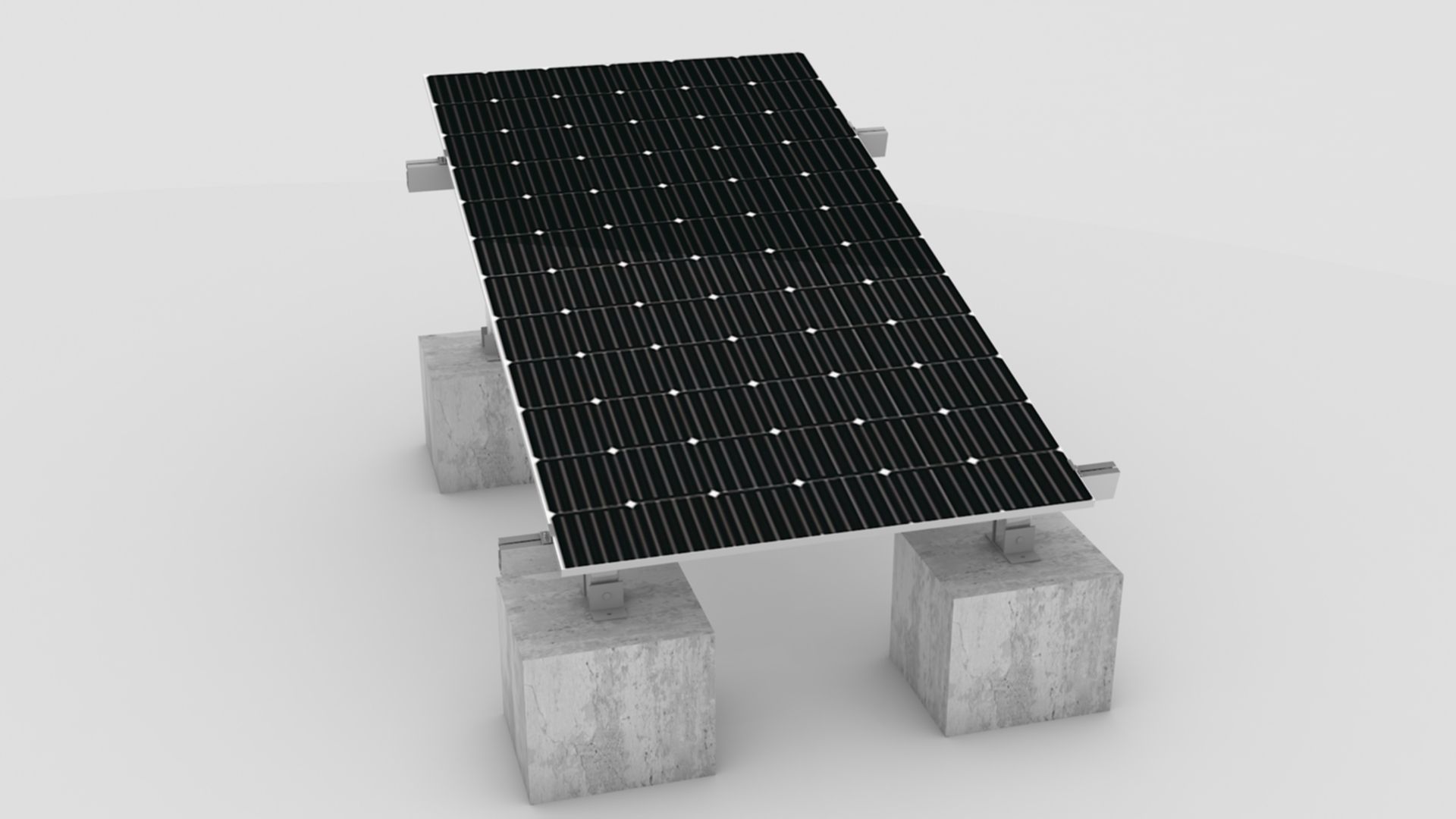

Name: Mounting Structures
Price:
Description:
SOLAR STAND L1
Specifications:
|
Max. Panels: 1 |
Panel Width: 1000mm |
Max. Thickness: 45mm |
|
Total Width: 1100mm |
Front/Back legs: 2/2 |
Bolt Size: M6 * 75 |
Features:
- Compact Shipping
- Anodized Aluminum rails and clamps
- SS fasteners
- Pre-Engineered for 120Km/hr wind speeds
- Ground, roof mounting

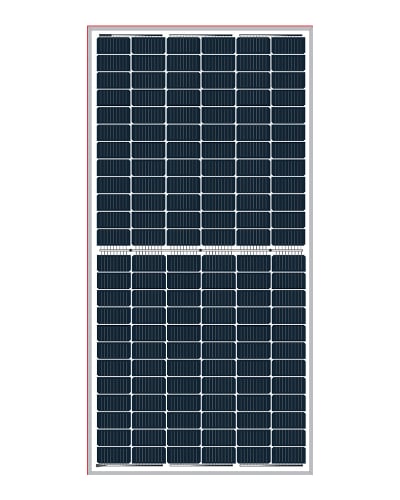

Name: Solar Panel (LONGI 420 watt)
Price:
Description:
HI-MO 420 WATT MONOFICIAL
ADVANCED MODULE TECHNOLOGY
BASED ON M-10 HALF-CUT WAFERS
Features:
- Module power: 400-420 W
- Efficienty: Upto 21.5%
- Dimensions: 1722 x 1134 x 30 mm
- Weight: 21.5 kg
- Frame: Anodized aluminum alloy (black)
- Front cover: 3.2 mm tempered glass
- Number of cell: 108
- Performance guarantee: 25 years
- Product guarantee: 12 years
- Cable length: 120 cm (positive), 120 cm (negative
Name: Solar Panel Stand (L3)
Price:
Description:
SOLAR STAND L3
Quick Specs:
| Max. Panels: 3 | Panel Width: 1000mm |
Max. Thickness: 45mm
|
| Total Width: 3300mm | Front/Back legs: 4/4 |
Bolt Size: M6 * 75
|
Features:
- Compact Shipping
- Anodized Aluminum rails and clamps
- SS fasteners
- Pre-Engineered for 120Km/hr wind speeds
- Ground, roof mounting
Name: Solar Panel Stand L4
Price:
Description:
SOLAR PANEL STAND-L6
Quick Specs
| Max. Panels: 6 | Panel Width: 1000mm |
Max. Thickness: 45mm
|
| Total Width: 3300mm | Front/Back legs: 6/6 |
Bolt Size: M6 * 75
|
Features:
- Compact Shipping
- Anodized Aluminum rails and clamps
- SS fasteners
- Pre-Engineered for 120Km/hr wind speeds
- Ground, roof mounting
Name: AGS GEL BATTERY (85 AH)
Price:
Description:
12V 85AH (20HR)
SPECIFICATIONS:
| Battery Type |
6FT15 |
|---|---|
| Plate Qty. / Cell |
15PL |
| Capacity @ 20 hrs. (AH) |
68 |
| Terminal Type |
T2 (Thick) |
| Battery Length |
363 +0/-5 |
| Battery Width |
170 +0/-5 |
| Overall Height (max.) |
227 |
| Polarity of Battery |
R |
| Dry Battery Weight (Kg) |
16.2 |
| Capacity @ 5 hrs. (AH) |
68 |
| Container Height (H) |
202 +0/-7 |
Name: AGS GEL BATTERY 12V-175AH
Price: 0
Description:
12V 175AH(20HR)
SPECIFICATIONS:
| Battery Type |
245H52 |
|---|---|
| Plate Qty. / Cell |
33PL |
| Capacity @ 20 hrs. (AH) |
220 |
| Terminal Type |
T2 (Thick) |
| Battery Length |
521 +0/-5 |
| Battery Width |
278 +0/-5 |
| Overall Height (max.) |
270 |
| Terminal Layout |
C |
| Dry Battery Weight (Kg) |
38.9 |
| Capacity @ 5 hrs. (AH) |
176 |
| Container Height (H) |
220 +0/-7 |
Name: OSAKA TUBULAR BATTERY-12V-80AH
Price:
Description:
Specifications
Nominal Voltage
12V
Capacity @ 20 HR
80 AH
Number of Plates
5
Dimensions (mm)L
347
Dimensions (mm)W
175
Dimensions (mm)H
265
Dimensions (mm)TH
295
Battery Weight (Kg)
30.5
Name: OSAKA TUBULAR BATTERY-12V-140AH
Price:
Description:
Specifications
Nominal Voltage
12V
Capacity @ 20 HR
140 AH
Number of Plates
5
Dimensions (mm)L
502
Dimensions (mm)W
190
Dimensions (mm)H
322
Dimensions (mm)TH
364
Battery Weight (Kg)
46.9
Name: OSAKA TUBULAR BATTERY-12V-170AH
Price:
Description:
Specifications:
Nominal Voltage
12V
Capacity @ 20 HR
170 AH
Number of Plates
7
Dimensions (mm)L
502
Dimensions (mm)W
190
Dimensions (mm)H
322
Dimensions (mm)TH
364
Battery Weight (Kg)
53.50
Name: JA Solar Panel Mono Perc-550Watts
Price:
Description:
Product Details:
|
Model |
JAM72S30-550/MR |
|
Peak power (Wp) |
550 |
|
Power tolerance |
0/+5W |
|
Number of cells |
144 |
|
Efficiency |
21,3% |
|
Frame |
Anodized aluminum silver color |
|
Dimensions |
2279 x 1134 x 35 mm |
|
Weight |
28,6 kg |
|
Cable |
1300 mm |
|
Connectors |
MC4-EVO2 |
|
Glass |
Tempered glass 3,5 mm |
|
frame |
Anodized Aluminum |
|
J-Box |
IP68 with 3 diodes |
|
Warranty |
12 years |
|
Warranty of generation |
84,8% at 25 years |
Name: Inverex Nitrox 8 KW - 48 V Solar inverter (Single phase)
Price:
Description:
PRODUCT DETAILS:
- 10400 WATTS MPPT SUPPORTS UP TO 600 WATTS SOLAR PANEL
- 190 AMP Solar charger
- Smart Pv Monitoring Platform
- Stick logger
- Max. Efficiency 97.6%
- Support Multiple Parallel
- Zero Export
- RS485 / CAN
- Efficiency
- IP65 Ingress Protection
- Support Generator Connection
- High Surge Endurance
- High Power Factor
- Touch Screen Display
- MPPT
- Internal SPD
- Six-Time of Use Setting
- Safe
- Dual Output
Remote Monitoring Features:
- Compatible with INVEREX POWER CUBE.
- Plug & play, pick power within inverter, no external power needed, easy to install.
- IP65 water-proof design, resistant to bad weather, enhance stability.
- External design, easier to replace faulty equipment.
- End-users can monitor yields at any time with SOLARMAN APP.
- 5 Years Warranty
Name: Inverex Nitrox 6 KW - 48 V Solar inverter (Single phase)
Price:
Description:
PRODUCT DETAILS:
- 7800 WATTS MPPT SUPPORTS UP TO 600 WATTS SOLAR PANEL
- 140 AMP Solar charger
- Smart Pv Monitoring Platform
- Stick logger
- Max. Efficiency 97.6%
- Support Multiple Parallel
- Zero Export
- RS485 / CAN
- Efficiency
- IP65 Ingress Protection
- Support Generator Connection
- High Surge Endurance
- High Power Factor
- Touch Screen Display
- MPPT
- Internal SPD
- Six-Time of Use Setting
- Safe
- Dual Output
Remote Monitoring Features:
- Compatible with INVEREX POWER CUBE.
- Plug & play, pick power within inverter, no external power needed, easy to install.
- IP65 water-proof design, resistant to bad weather, enhance stability.
- External design, easier to replace faulty equipment.
- End-users can monitor yields at any time with SOLARMAN APP.
- 5 Years Warranty
Name: Inverex Nitrox 3 KW - 24 V Solar inverter (Single phase)
Price:
Description:
PRODUCT DETAILS:
- 4000 WATTS MPPT SUPPORTS UP TO 600 WATTS SOLAR PANEL
- 140 AMP Solar charger
- Smart Pv Monitoring Platform
- Stick logger
- Max. Efficiency 97.6%
- Support Multiple Parallel
- Zero Export
- RS485 / CAN
- Efficiency
- IP65 Ingress Protection
- Support Generator Connection
- High Surge Endurance
- High Power Factor
- Touch Screen Display
- MPPT
- Internal SPD
- Six Time of Use Setting
- Safe
- Dual Output
Remote Monitoring Features:
- External light indicator, logging status at a glance
- Plug & play, pick power within inverter, no external power needed, easy to install.
- IP65 water-proof design, resistant to bad weather, enhance stability.
- External design, easier to replace faulty equipment.
- End-users can monitor yields at any time with SOLARMAN APP.
- 5 Years Warranty
Name: Inverex Nitrox 15 KW-3Ph On-Grid Solar Inverter
Price:
Description:
PRODUCT DETAILS:
- Max Efficiency 98.6%
- Dual Maximum Power Point Tracking Controller
- Internal SPD
- Zero Export
- Three Operating Phase
- Euro Efficiency 97.8
- Interface RS485/RS232IP65 Ingress Protection
- High Power Factor
- 10 Years Warranty( 5 Year replacement warranty) Terms and conditions apply.
Name: Inverex Nitrox 20 KW-3Ph On-Grid Solar Inverter
Price:
Description:
PRODUCT DETAILS:
- Max Efficiency 98.6%
- Dual Maximum Power Point Tracking Controller
- Internal SPD
- Zero Export
- Three Operating Phase
- Euro Efficiency 97.8
- Interface RS485/RS232IP65 Ingress Protection
- High Power Factor
- 10 Years Warranty( 5 Year replacement warranty) Terms and conditions apply.
Name: Inverex Nitrox 10 KW-3Ph On-Grid Solar Inverter
Price:
Description:
PRODUCT DETAILS:
- Maximum Efficiency 98.3%
- Dual Maximum Power Point Tracking Controller
- Interface RS485/RS232
- Topology Transform less
- Three Phase Operating
- High Surge Endurance
- Zero Export
- High Power Factor
- AC Connection IP65
- IP65 Ingress Protection
- 10 Years Warranty( 5 Year replacement warranty) Terms and conditions apply.
Name: Inverex 6 KW-3Ph On-Grid Solar Inverter
Price:
Description:
PRODUCT DETAILS:
- Max Efficiency 98.3%
- Three Phase Operating
- Topology Transform less
- AC Connection IP65 Rated Plug.
- Interface RS485/RS232
- High Power Factor
- Zero Export
- High Surge Endurance
- IP65 Ingress Production
- Dual Maximum Power Point Tracking Controller
- 10 Years Warranty( 5 Year replacement warranty) Terms and conditions apply.
Name: Inverex Nitrox 35 KW 3Ph-5G PV Solar On-Gird Inverter
Price:
Description:
PRODUCT DETAILS:
- Max. Efficiency 98.7%
- Internal SPDs
- PV string current monitoring (Optional)
- Dual MPPT Multi String
- Zero Export (Optional)
- High Surge Endurance
- PID-Recovery function (Optional)
- RS485/RS232
- IP65 Ingress Protection
- PV string current monitoring (Optional)
- Smart PV Monitoring Platform
- Solarman Smart For enduser
- Solarman Business For installers and EPC
- 10 Years Warranty( 5 Year replacement warranty) Terms and conditions apply.

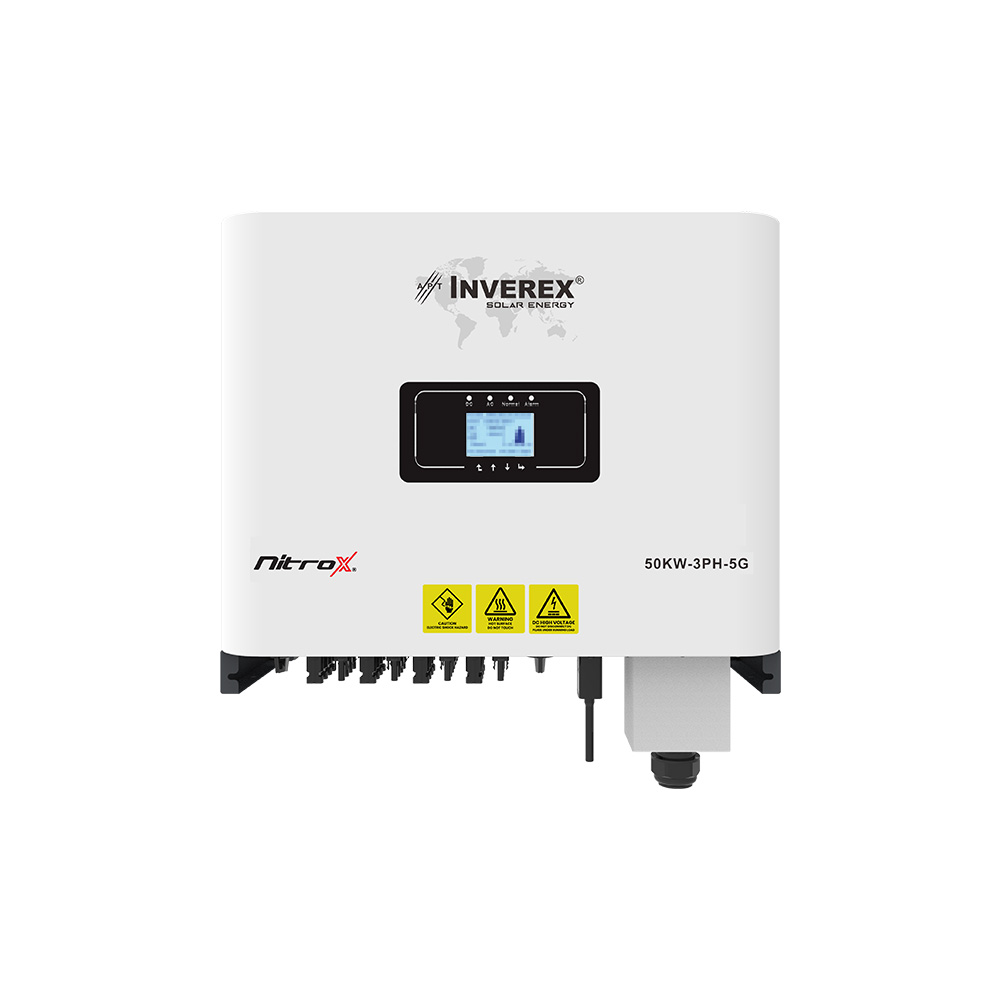

Name: Inverex Nitrox 50 KW 3Ph-5G PV Solar On-Gird Inverter
Price:
Description:
PRODUCT DETAILS:
- Max. Efficiency 98.9%
- Internal SPDs
- High Power factor
- 4 MPPT for 50, and 75 KW
- 6 MPPT for 100 KW
- Zero Export (Optional)
- High Surge Endurance
- RS485/RS232
- IP65 Ingress Protection
- Smart PV Monitoring Platform
- 10 years warranty
- 5 years replacement warranty
- Solarman Smart For enduser
- Solarman Business For installers and EPC
- 10 Years Warranty( 5 Year replacement warranty,) Terms and conditions apply.
Name: Inverex Nitrox 75 KW 3Ph-5G PV Solar On-Gird Inverter
Price:
Description:
PRODUCT DETAILS:
- Max. Efficiency 98.9%
- Internal SPDs
- High Power factor
- 4 MPPT for 50, and 75 KW
- 6 MPPT for 100 KW
- Zero Export (Optional)
- High Surge Endurance
- RS485/RS232
- IP65 Ingress Protection
- Smart PV Monitoring Platform
- 10 years warranty
- 5 years replacement warranty
- Solarman Smart For enduser
- Solarman Business For installers and EPC
- 10 Years Warranty( 5 Year replacement warranty) Terms and conditions apply.
Name: Inverex Nitrox 100 KW 3Ph-5G PV Solar On-Gird Inverter
Price:
Description:
PRODUCT DETAILS:
- Max. Efficiency 98.9%
- Internal SPDs
- High Power factor
- 4 MPPT for 50, and 75 KW
- 6 MPPT for 100 KW
- Zero Export (Optional)
- High Surge Endurance
- RS485/RS232
- IP65 Ingress Protection
- Smart PV Monitoring Platform
- 10 years warranty
- 5 years replacement warranty
- Solarman Smart For enduser
- Solarman Business For installers and EPC
- 10 Years Warranty( 5 Year replacement warranty) Terms and conditions apply.
Name: JA Solar Panel Mono Perc-550Watts
Price:
Description:
|
Model |
JAM72S30-550/MR |
|
Peak power (Wp) |
550 |
|
Power tolerance |
0/+5W |
|
Number of cells |
144 |
|
Efficiency |
21,3% |
|
Frame |
Anodized aluminum silver color |
|
Dimensions |
2279 x 1134 x 35 mm |
|
Weight |
28,6 kg |
|
Cable |
1300 mm |
|
Connectors |
MC4-EVO2 |
|
Glass |
Tempered glass 3,5 mm |
|
frame |
Anodized Aluminum |
|
J-Box |
IP68 with 3 diodes |
|
Warranty |
12 years |
|
Warranty of generation |
84,8% at 25 years |
Name: Longi Solar Panel 425
Price:
Description:
LR4-72HPH 425~455M SERIES
ADVANCED PERC TECHNOLOGY
Product Details:
- Module power: 425-455 W
- Efficienty: Upto 20.9%
- Dimensions: 2094 x 1038 x 35 mm
- Weight: 23.5 kg
- Frame: Anodized aluminum alloy (silver)
- Front cover: 3.2 mm tempered glass
- Number of cell: 144
- Performance guarantee: 25 years
- Product guarantee: 12 years
- Cable length: 30 cm (positive), 30 cm (negative)
Name: JA Solar Panel Mono Perc-550Watts
Price:
Description:
|
Model |
JAM72S30-550/MR |
|
Peak power (Wp) |
550 |
|
Power tolerance |
0/+5W |
|
Number of cells |
144 |
|
Efficiency |
21,3% |
|
Frame |
Anodized aluminum silver color |
|
Dimensions |
2279 x 1134 x 35 mm |
|
Weight |
28,6 kg |
|
Cable |
1300 mm |
|
Connectors |
MC4-EVO2 |
|
Glass |
Tempered glass 3,5 mm |
|
frame |
Anodized Aluminum |
|
J-Box |
IP68 with 3 diodes |
|
Warranty |
12 years |
|
Warranty of generation |
84,8% at 25 years |
Name: Longi Hi-Mo 535 to 555 watt
Price:
Description:
LR5-66HPH 495~515M SERIES
ADVANCED MODULE TECHNOLOGY
BASED ON M-10 HALF-CUT WAFERS
Specifications:
- Module power: 535-555 W
- Efficienty: Upto 21.7%
- Dimensions: 2256 x 1133 x 35 mm
- Weight: 27.2 kg
- Frame: Anodized aluminum alloy (silver)
- Front cover: 3.2 mm tempered glass
- Number of cell: 144
- Performance guarantee: 25 years
- Product guarantee: 12 years
- Cable length: 140 cm (positive), 140 cm (negative)
Name: Jinko Tiger(Pro) 540Watt Solar Panel Mono PERC
Price:
Description:
|
Power
|
Efficiency
|
Power Warranty
|
Temperature Co-efficient
|
Max. Bifaciality
|
|
540 Watt
|
23.23%
|
30 years
|
-0.29% |
85%
|
Product Details:
Cell Type : P Type Mono crystaline
No of cells: 144(6*24)
Dimensions: 2278*1134*35mm
Weight : 28kg
Name: JA Solar Panel Mono Perc-550Watts
Price:
Description:
Product Details:
|
Model |
JAM72S30-550/MR |
|
Peak power (Wp) |
550 |
|
Power tolerance |
0/+5W |
|
Number of cells |
144 |
|
Efficiency |
21,3% |
|
Frame |
Anodized aluminum silver color |
|
Dimensions |
2279 x 1134 x 35 mm |
|
Weight |
28,6 kg |
|
Cable |
1300 mm |
|
Connectors |
MC4-EVO2 |
|
Glass |
Tempered glass 3,5 mm |
|
frame |
Anodized Aluminum |
|
J-Box |
IP68 with 3 diodes |
|
Warranty |
12 years |
|
Warranty of generation |
84,8% at 25 years |
Efficient, Innovative and Cost-Effective Solutions for Energy Problems.
Sialkot_Office
-
Rahimpur, Ugoki, Sialkot, Punjab, Pakistan
-
+92 300 1115773+92 52 3571268
+92 331 8888004 -
info@nksolarenergy.com
Islamabad_Office
-
Office 1 Basement, MC-3, Mustafa Plaza, Circular Road, CBR Town, Phase-I, Islamabad, Pakistan
-
+92 331 8888002
+92 331 8888003
